Jafuji Magnetic V Blocks

SPECIFICATIONS

Are most useful for inspection, Tool room and Standard Room.

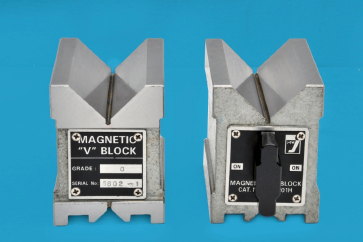

It has total 3 magnetic surfaces i.e., the top and bottom each with 90 Degree V angle and the end surface is opposite to the switch. All the 3 magnetic surfaces are accurately ground and care has been taken as such this can be used in dry as well as wet Machining operations.

From quality aspect the accuracy for flatness, parallelism and squareness is within 5 microns. All Jafuji Magnetic V blocks are supplied along with calibration traceable to national standards.

The Permanent magnet is housed in such a way that all the three magnetic surfaces are activated simultaneously during ‘ON ‘position of the knob. The High power magnetised surfaces hold the work job firmly and the block holds any ferrous surface.

Jafuji Magnetic V Blocks with hardened surface at the main v angle and the bottom holding surface are equipped with hardened plates which ensure extra resistance.


SL. NO

MODEL

SIZE

PRODUCT

1

JMV198

40*40*50 mm

2" Standard

2

JMV203

75*75*56 mm

3" Hardened

3

JMV201

100*95*70 mm

4” Hardened

4

JMV205

150*100*75 mm

6” Hardened
